CNG Gas Cylinder External Hydro

Basic Info.

Model NO.	HLT
Loading Method	Dynamic Load
Display	Digital
Control	Computer Control
Weight	1000-2000Kg
Power Source	AC380V
Oil Cylinder Position	Top
Water Pressure Test Pressure	20-40MPa
Accuracy of Pressure Sensor	0.25%
System Design Pressure	50 MPa
Accuracy of Electronic Scale	200g
Product Name	Automatic Gantry External Hydro-Static Testing
Beat	16-20 PCS/Hour/Set
Volume	40-310L
Electricity	415V, 50Hz
The Weight of The Gas Cylinder	Below 150kg
Diameter	279-540 mm
Length of Gas Cylinder	800-2700mm
Transport Package	Standard Seaworthy Package
Specification	ISO9001
Trademark	HLT
Origin	Jiangsu, China
HS Code	9024800000
Production Capacity	300 Sets/Year

Product Description

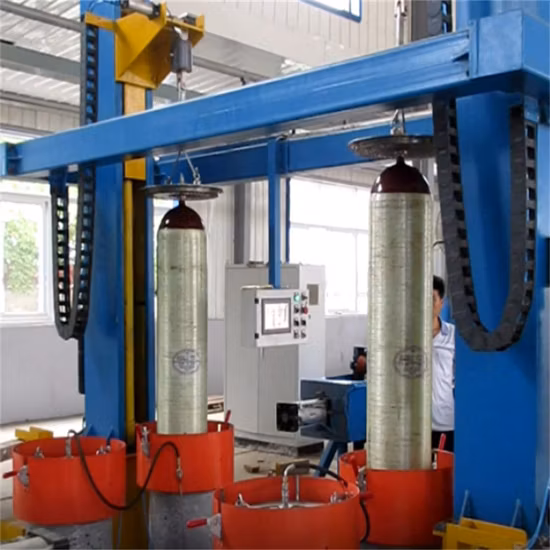

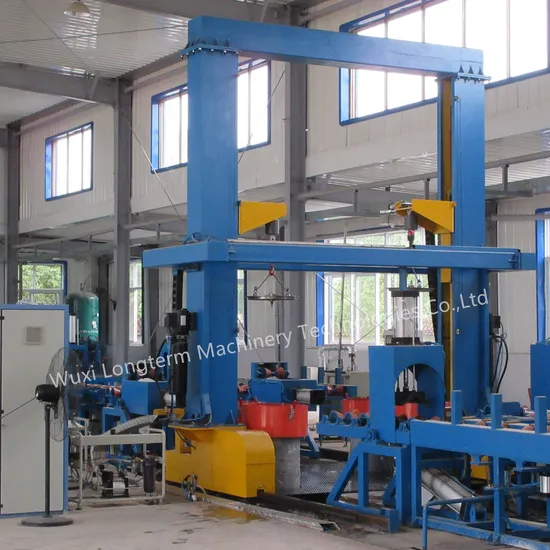

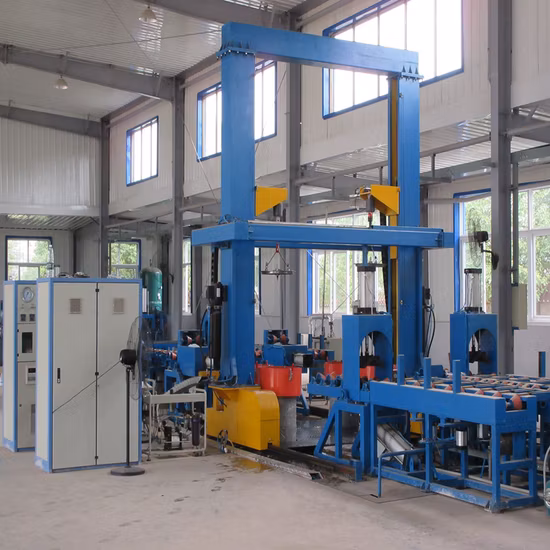

CNG Gas Cylinder External Hydro-Static Testing Machine Water Pressure Tester for Seamless Gas Cylinder
(1) Equipment usage, working principle and characteristics
The external test method hydraulic test line is a test equipment used to detect the residual deformation rate of gas cylinders, including weighing, watering, testing (measurement of residual deformation rate), loading and unloading, water discharge, and drying.The hydraulic test section of the pipeline should be automatically carried out by the computer controlled test process, and automatically complete the pressure increase (self-tightening pressure), pressure holding, pressure relief, pressure increase (water pressure test pressure), pressure holding, and pressure relief; through the computer Collect hydraulic test pressure data and pre-tightening pressure data, and automatically calculate the residual deformation rate. The entire hydraulic test process is automatically completed, and related test data and graphs can be stored.Its working principle is: put the test bottle in a special water jacket, and use a high-pressure pump to pressurize the test bottle.After reaching the set pressure, it automatically enters the pressure-holding state, and the pressure test is performed on the tested bottle. At the same time, the gas cylinder expands under the test pressure, squeezing a part of the water in the water jacket into the measuring cup, so that the The amount of water increases, and the increased amount of water is the full deformation of the cylinder (automatically transmitted to the industrial computer). After the cylinder is depressurized, the elastic deformation disappears, so the water in the measuring cup returns to the water jacket, but the water in the measuring cup is still It is more than before the cylinder is pressurized. The extra water is the volume residual deformation of the cylinder (automatically transmitted to the industrial computer), and the ratio of the volume residual deformation to the total deformation is the volume residual deformation rate of the cylinder.The flexible guide rail conveying hydraulic test line is equipped with a smart flexible guide rail suspension conveyor, which can realize manual fixed-point horizontal conveying, electric hoist lifting, easy, convenient, stable and reliable.This machine is simple to operate and easy to maintain. It is fully developed in accordance with the national standard GB/T9251-2011 "Cylinder Pressure Test Method" and the American DOT standard. It is an ideal selection equipment for natural gas cylinders and seamless gas cylinder manufacturers and testing units.

Cylinder parameters1. Length of gas cylinder: 800~2700mm2. Diameter: 279~540 mm3. Volume: 40~310L4. The weight of the gas cylinder: ≤150Kg(3) On-site working environment1. Relative humidity: ≤85%2. Compressed air: 0.4~0.7MPa3. Saturated steam: ≥140ºC, 0.5Mpa4. Electricity: 415V±10% 50Hz±2Hz5. The driving track height of the workshop: 7m(4) Technical specifications and requirements1. Production program and usage: 8 hours/shift, 2 shifts/day, 252 days/year.2. Beat: 16-20 pcs/hour/set (including loading and unloading time, taking 65L steel gas cylinder as an example, holding pressure for 30s)3. System design pressure: 50 MPa4. Water pressure test pressure: 20~40MPa5. Minimum resolution of residual deformation: 0.1g 6. Water volume measurement accuracy: ≤0.1ml7. Gas cylinder weighing range: 600kg, accuracy of electronic scale: 200g8. Accuracy of pressure sensor: 0.25%9. Precision pressure gauge: 0.25 level (PSI, MPa double reading value) Working pressure gauge: 1.0 level10. Saturated steam temperature/pressure: 150ºC/0.4-0.5MPa

Process flowFeeding power conveying line---dynamic weighing of empty bottles---clamping and flipping---automatic filling---upper cap---full bottle hanging weighing and volume measurement---manual translation feeding-- -Automatically fall into the water jacket, automatic water replenishment and exhaust---Airbag automatic sealing---Hydraulic pressure test pressure, pressure retention, pressure relief, storage test results---Airbag automatic retraction, sealing release, automatic cylinder lifting- --Manually transfer to the unloading area---Unloading jacket cover---Clamping and turning rollers for conveying and feeding---Automatic water pouring and drying (compressed air steam source and pipe valve are provided by the buyer)---Out Material power conveyor line
Expansion online testing machine Testing pressure:0~60MPa(adjustable) Testing efficiency:16~20pcs/hour (2 main engine,four water jacket,50L CNG cylinder as a example) Working air source pressure:0.6~1.0MPa; Working gas source flow:1.5 m3/min; Water volume measurement accuracy:≤0.1g; External power supply voltage:220V /50Hz; Internal pressure sealed threaded joint; Working medium:water; Max design pressure:60MPa; Pressure increasing rate:≥0.25MPa/s Main functions of the equipment:1) Bottle mouth sealing (using our company's patent-internal pressure sealed threaded joint. Patent number: ZL2008 1 0234345.7)2) Airbag sealing water jacket (utility model patent: ZL2009 2 0042903.0)3) Equipped with pressure fine-tuning device4) Automatic water injection (using the principle of fuel gun)5) The weight of the empty bottle is weighed in a dynamic way, the weight of the bottle is weighed in the hanging way, the weight of the empty bottle and the weight of the bottle are automatically read, and the volume is automatically calculated6) System background parameter setting7) Standard bottle hydrostatic test and hydrostatic test report8) Parameter setting of cylinder water pressure test9) Automatically collect and save water volume (deformation value), pressure, and time data sets10) Dynamic display of pressure-water inflow, pressure-time, time-water inflow curve11) Cylinder water pressure test, automatically calculate the residual deformation rate of the test cylinder and determine the test result, and save the test data automatically;12) Can query and reproduce the test parameters and test process of the gas cylinders that have been subjected to the hydraulic test13) Automatically generate and output hydraulic test report14) It can switch between automatic and manual tests to ensure that every manual action can be realized15) Computer remote control and maintenance functions16) The smart flexible guide rail type suspension conveyor can realize manual fixed-point horizontal transportation, electric hoist lifting, easy and convenient, stable and reliable.
Test screen display
1. The relevant data of the tested gas cylinder, the batch number of the tested gas cylinder, the factory number, the nominal working pressure, the hydraulic test pressure, the volume of the gas cylinder, and the date of manufacture;2. Test date;3. Temperature of test water;4. Pressure-time curve of the tested gas cylinder;5. The actual volume of the tested gas cylinder;6. The total deformation of the tested gas cylinder;7. The volumetric residual deformation rate of the tested gas cylinder;
